1. Product Overview

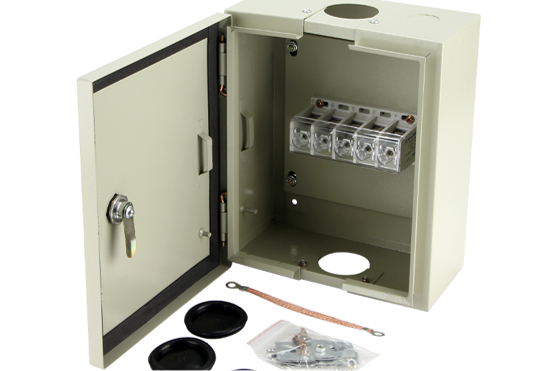

A cable T-junction box plays a vital role in power systems. It essentially houses a five- or four-wire copper busbar, containing three hot, one neutral, and one ground. The main line connects to the T-junction box from the power source, while other branches connect from the T-junction box to a terminal box (distribution box). This system is suitable for applications with high currents and large branch lines.

2. Working Principle T-connection is a typical radial power distribution in the line.

Its core principle is to achieve the branching of the main line without cutting the cable. By properly arranging the copper busbars in the box, the power of the main line can be safely and stably distributed to each branch line to meet the power needs of different terminal devices.

3. Product Features

(1) Construction advantages

1. Flexible Configuration: The cable T-junction box can be flexibly configured based on actual power demand and on-site wiring conditions. Construction personnel can easily adjust the internal wiring of the T-junction box to accommodate various complex power distribution scenarios, based on factors such as the number of branches and load size.

2. Save time, effort, and money: Since there's no need to cut cables for branching, this significantly reduces construction time and workload. It also avoids the additional costs associated with cutting and reconnecting cables, such as cable loss and increased labor costs. This reduces overall power system construction costs and improves efficiency, making it a highly popular choice among construction teams.

(2) Advantages of installation and use

1. Easy Installation: This product's installation process is extremely simple and requires no special tools. Workers can easily install the T-junction box without the need for complex, specialized equipment. This not only reduces the skill requirements but also speeds up installation, reducing both time and labor costs.

2. Reliable Connection: The cable T-junction box reliably connects bare conductors without the use of bare copper lugs. This connection method not only ensures the stability and safety of the electrical connection, but also avoids faults such as poor contact and overheating caused by loose or oxidized lugs. Furthermore, it enables a copper-to-aluminum transition, eliminating the potential for electrochemical corrosion when connecting conductors of different materials, further improving the reliability and service life of the connection.

IV. Application Scenarios

Cable T-junction boxes are widely used in various places where power distribution is required, and they show obvious advantages especially in cases where the current is large and there are many branches.

1. Industrial plant:In industrial production, large factories have numerous electrical devices with high power consumption. Cable T-junction boxes can rationally distribute the main power from the substation to the terminal distribution boxes in various workshops and production lines, meeting the power needs of different equipment.

2. Commercial buildings:Commercial centers, office buildings, and other places require a large amount of power for lighting, air conditioning, elevators, and other equipment. Cable T-junction boxes can be used to branch trunk lines and provide a stable power supply to terminal distribution boxes on each floor and in different functional areas.

3. Residential area:In the power system of a residential community, the cable T-junction box can distribute the community's total incoming power to the distribution boxes of each unit building, and then the unit building distribution boxes distribute the electricity to each household, ensuring normal electricity use for residents.
